xPortal3000
xPortal3000
Hardware
- Proximity / Mifare Technology
- Reader Unit with LCD & Keypad (Colour LCD Keypad Available – Plato)
- Built-in Controller Function for Memory & Time Control
- Supports Exit Reader Unit
- Supports External I/O for Interfacing with CCTV / Sirens
- Keep Transactions Data even Power Fails
- Encrypted IP Controller
- Can Program Directly at the Reader Keypad (or from PC Software)
- Can be Linked to PC through LAN / Serial RS485
Software
- Supports Time Set & Time Zones
- Supports Transaction Recording
- Supports Transaction Memory Retention
- Can Program Directly at the PC Software (or the Reader Keypad)
- xPortal3000 Software with Access Management Automatic Data Collection, Time Attendance Function,
Client-Server Version Available - Server Runs as a Windows Service
- Multi-Language
Time Attendance
- Designate Specific Reader for Attendance
- Supports Attendance Door Group by Staff
- Configurable Export for Integration with Payroll System
- Configurable Shift Setting
- Supports Flexi Hour
Car Park
- Supports 1 IN and 1 OUT Reader
- Supports Car Park Vehicle Counting and Control
- Supports Car Park Full Sign Activation
Finger Print
- Reliable Optical Fingerprint Sensor
- Supports Up to 3500 Templates
- Can be Used Together with Card Access System with Same Software
- Multiple Operating Modes – Fingerprint + Card + Pin Codes

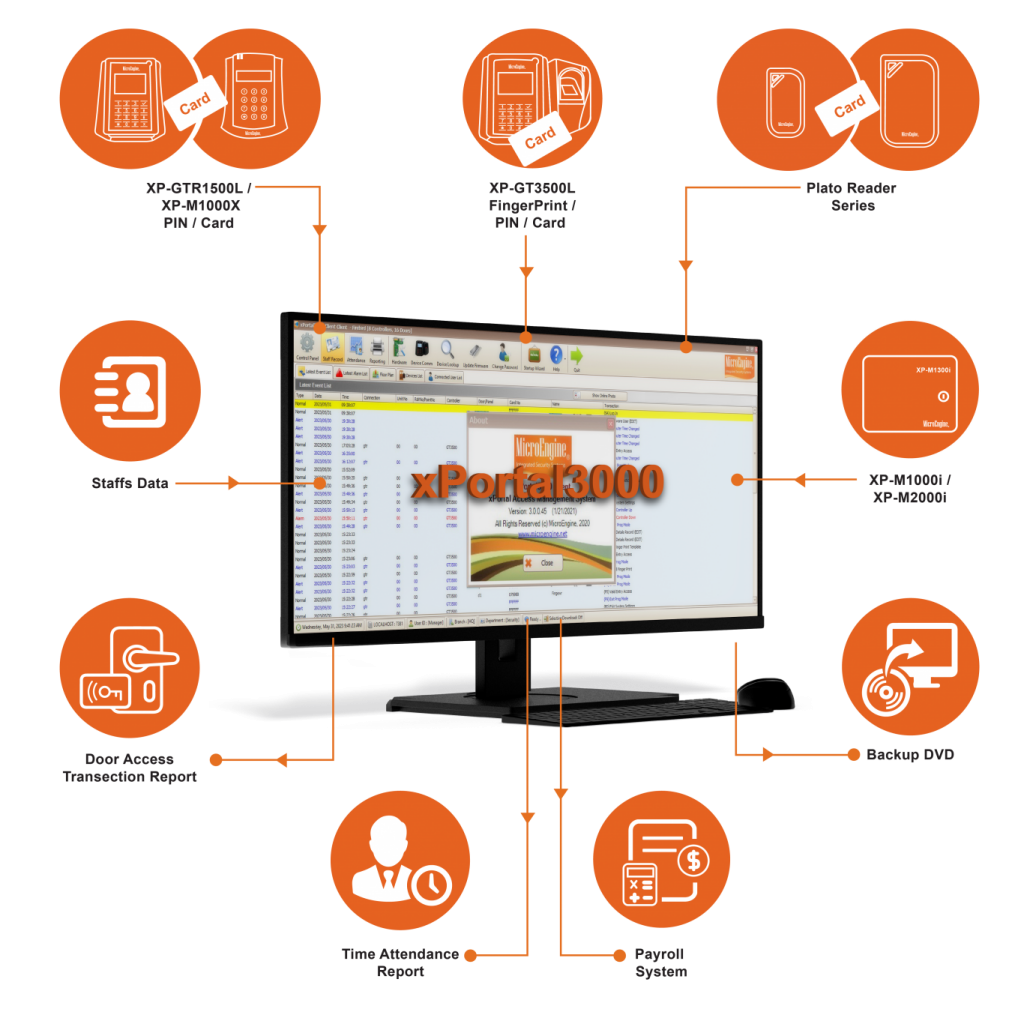

FeaturesConnectivity SetupOrdering InformationPC RequirementsDocumentationFAQ
| No | Features |
Description
|
||
|
Free
|
xPortal 3000/S
|
xPortal 3000
|
||
| 1. | Operating System |
Windows 7, 8, 10, and 11 (Home & Starter Editions Not Supported)
Windows Server 2008, 2012, 2019 and 2022
(Required Microsoft .Net Framework v3.5)
|
||
| 2. | Max No. of Controller/ Doors |
8/16
|
32/64
|
64/128
|
| 3. | Controller Supported |
XP-M1000i v2, XP-M1000X, XP-M1300i, XP-M1300i/IP, XP-M1000i-SE21,
XP-M2000i, XP-M2300i, XP-M2300i/IP, XP-GT3500L, XP-GT3500ABL,
XP-GT10KL, XP-GT10KABL, XP-GTR1500L, XP-GTR1500ABL, XP-GT3200L,
XP-GT3200LE, XP-GT3200LCPX, XP-GT1200L, XP-GT1200LE,
XP-GT1200LCPX, XP-GTR1200, XP-GTR1200LE, XP-GTR1200LCPX
|
||
| 4. | Card Holder |
1,000
|
10,000
|
10,000
|
| 5. | Transaction Records |
Limited by Disk Space
|
||
| 6. | Server as Windows Service |
Yes
|
||
| 7. | Time Set & Time Zone |
255
|
||
| 8. | Holiday Dates |
30
|
||
| 9. | Access Levels |
255
|
||
| 10. | Anti-Passback |
Yes
|
||
| 11. | Automatic Transaction Retrieval |
Yes
|
||
| 12. | Password Controlled Software User |
Yes
|
||
| 13. | User Defined PIN Selection |
Yes
|
||
| 14. | Daily Attendance Reporting |
Yes
Simple Single Day Daily Mode Late-in, Absent, Total Work Time, OT, Flexi Hour
|
||
| 15 | Monthly Attendance Reporting |
Yes – Summary of Attendance Status
|
||
| 16. | Who’s Still In Report |
Yes – Multiple Door Selection
|
||
| 17. | Wizard-Based Configuration |
Quick Start Guide, Add New Controller, Shift Configuration
|
||
| 18. | Dynamic Floor Plan |
Yes
|
||
| 19. | Online Events Viewing |
Yes
|
||
| 20. | Online Help |
Yes
|
||
| 21. | Database |
FireBird
|
||
| 22. | Communication Link to PC |
Serial RS485 or IP
|
||
| 23. | Multi-Workstation |
No
|
No
|
Yes-Max 3
|
| 24. | Multi-Language by System User |
No
|
Yes
|
Yes
|
| 25. | System User |
Use Default only
|
Can Add New System User
|
Can Add New System User
|
| 26. | System User Menu Access Setting |
No
|
Yes
|
Yes
|
| 27. | Scheduled Backup |
No
|
No
|
Yes
|
| 28. | Scheduled Attendance Rebuild |
No
|
No
|
Yes
|
| 29. | Online Events Shortcut – Provide Quick Access to Perform Relevant Operations to Event |
No
|
No
|
Yes
|
| 30. | Floor Plan Thumbnail |
No
|
No
|
Yes
|
| 31. | Advanced Floor Plan Icon Setting |
No
|
No
|
Yes
(Can Resize Label Position) |
| 32. | Multi Database |
No
|
No
|
Yes
|
* The feature listed here are for the software only. It depends on the choice of the hardware system such as controller, I/O board, readers and computer system for it to work. Kindly contact our representatives for further clarifications.
| No | Item | Features |
| 1. | XP-GT3500L | Proximity Reader with FingerPrint Reader with Colour LCD and Keypad reader and built-in controller with direct TCP/IP LAN. 3,500 users, 20,000 event transactions. |
| 2. | XP-GT3500LABX | MIFARE / ISO14443A / B Serial No Reader with FingerPrint Reader with Colour LCD and Keypad reader and built-in controller with direct. 3,500 users, 20,000 event transactions TCP/IP LAN. |
| 3. | XP-GTR1500L | Proximity Reader with Capsense Keypad and LCD and built-in single door controller with direct TCP/IP LAN. 1,500 users, 10,000 event transactions. |
| 4. | XP-GTR1500LABX | MIFARE / ISO14443A / B Serial No Reader with Capsense Keypad and LCD and built-in single door controller with direct TCP/IP LAN. 1,500 users,10,000 event transactions. |
| 5. | XP-GT10KL | Single Door Proximity Fingerprint Reader with Direct TCP/IP LAN Support up To 10K Fingerprint Templates. |
| 6. | XP-GT10KLABX | Single Door MIFARE Fingerprint Reader with Direct TCP/IP LAN Support up To 10K Fingerprint Templates. |
| 7. | XP-M1300i/IP | 1 Door Network Controller. Max 2 RS485, In & Out Readers / 2 Weigand Reader Connection. 2 Relay Outputs & 6 Inputs. 30,000 Users, 50,000 Event Transactions. TCP/IP. Power Supply & Back Up Battery with Metal Enclosure. |
| 8. | XP-M1000i-SE21 | 1 Door Network Controller. Max 2 RS485, In & Out Readers Connection. 1 Relay Output & 4 Inputs.10,000 Users, 50,000 Event Transactions. TCP/IP. Power Supply & Back Up Battery with Metal Enclosure. |
| 9. | MCI-XPC3000/S | Standalone Software License Dongle xPortal3000 |
| 10. | MCI-XPC3000 | xPortal3000 Client / Server Software License |
| 11. | XP-M2300i/IP | 2 Door Network Controller. Max 4 RS485, 2 In & 2 Out Readers / 2 Weigand Reader Connection. 4 Relay Outputs & 11 Inputs.30,000 Users, 50,000 Event Transactions. TCP/IP. Power Supply & Back Up Battery with Metal Enclosure. |
| 12. | MPC-100 | Proximity Card |
| 13. | MPC-S1K | Mifare Standard 1KBit ISO Card |
| 14. | PLATO-P80MS | Proximity Reader. 125 kHz EM. RS485. ABS Casing. MCMC Certified. |
| 15. | PLATO-P80KLS | Proximity Reader with Keypad & LCD. 125 kHz EM. RS485. Smart Touch Sense Keypad. Graphic LCD Display. ABS Casing. MCMC Certified. |
| 16. | PLATO-S82 | MIFARE / CEPAS Contactless Reader. 13.56 MHz ISO14443A / B. RS485. ABS Casing. Small Size. MCMC Certified. (Replacement Model for PLATO-C80S). |
| 17. | PLATO-M82 | MIFARE Classic / DESFire Advanced High Security Multi-Format 13.56 MHz ISO14443A / B. Encrypted RS485 – Read CSN and Encrypted Profile ID. ABS Casing. MCMC Certified. (Replacement Model for PLATO-RM80MS). |
| 18 | PLATO-K82 | MIFARE Classic / DESFire Advanced High Security Multi-Format 13.56 MHz ISO14443A / B. Color Graphics LCD. Touch Sense Keypad. Encrypted RS485 – Read CSN and Encrypted Profile ID. ABS Casing. MCMC Certified. (Replacement Model for PLATO-RM80KLS). |
| No | Item | Features |
| 1. | CPU (Recommended) | Intel Core i5-10400 or Higher |
| 2. | RAM (Minimum) | 4 GB (8 GB Recommended) |
| 3. | OS | Microsoft Windows 7, 8, 10, 11 (Home & Starter Editions Not Supported) Microsoft Windows Server 2008, 2012, 2019, 2022 |
| 4. | Microsoft.Net Framework | Yes(Version 3.5) |
| 5. | Ethernet & Serial Port | Yes |
| 6. | USB Port | Optional – Required for USB Dongle, USB to RS232 serial port converter |
| 7. | Hard Disk (Free Space) | 50 GB |
| No | Documentation |
| 1. |  Datasheet – xPortal3000 |
