XP-GT3500L

XP-GT3500L

The XP-GT3500L Access Control System is designed to meet the high standards required in security for today and in the future. Attached with the fingerprint verification unit, the XP-GT3500L is able to cater for different levels of security needs and applications. The user may opt to install a card identification first and still have the option to add the fingerprint verification when the need arises.

The XP-GT3500L itself boast a rich suit of features and capabilities. Built with high density memory offered by flash technologies, it can cater to a card user capacity of up to 3,500 and transaction record capacity of up to 50,000 to cater to applications ranging from residential, commercial, industrial and even public sectors. 99 numbers of Time Set and Time Zone provides the user with the flexibility to control the access level of each user up to the minute. Its capability to offer different features when operating under Door Access and Time attendance also enables it to provide a more complete solution under these circumstances.

FeaturesConfiguration DiagramPC RequirementsDocumentationFAQ
No Features Functions
1. Card User Memory 3,500
2. Transaction Records 50,000
3. Single Unit Reader, Keypad & Controller Yes
4. Build-In Card Reader Yes – EM Card (Mifare Card with Mifare Sector Reading Model Available)
5. Access Operation Mode Card Only, Card + PIN, Fingerprint
Card + Fingerprint, PIN + Fingerprint
Card + PIN + Fingerprint
6. Fingerprint Template Capacity
1:N
3500
1:3500
7. Display 128 x 64 Graphic Display with Back Light
8. Keypad Touch Sense Keypad with Backlight
9. Time Set & Time Zone Yes (99 set)
10. Holiday Dates 40
11. Auto PIN Not Available
12. Built-in Real Time Clock with Battery Yes
13. Car Park Mode External Entry Reader No
14. Exit Reader Yes – Use MAS-RBM to connect the Entry and Exit Unit
15. Exit Push Button Yes – with Time Zone Control
16. Support Wiegand 26-bit Reader Yes
17. Anti-Passback Yes
18. Controller Operation Mode Access Control Mode
19. Supports Programming Through Keypad
& LCD at the Reader
Yes
20. Lock Control, Door Sensor & Exit Button Input Yes – Through MAS-RBM Located Inside the Door
21. Configurable Lock Release Time Yes – 0-99 secs.
22. Configurable Door Open Time Yes – 0-99 secs.
23. Auto Lock Release Time Zone Yes
24. Sensor & Output No
25. Data Flash Memory 32MBit
26. Onboard Buzzer Yes
27. Communication Ports RS485 / LAN
28. Can be Linked to PC for Software Control Yes
29. Power 12VDC
30. Dimension 131mm (H) x 158mm (W) x 65mm (D)

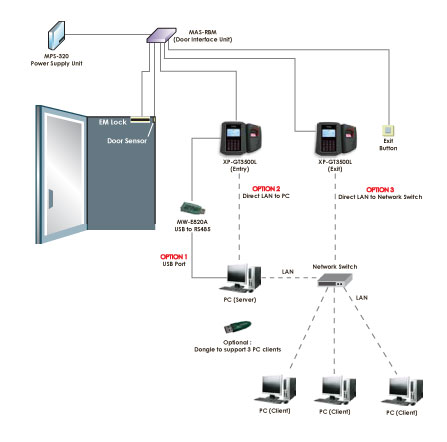

Configuration Diagram GT3500L

No System Requirements
1. CPU (Recommended) Intel Core i5-5220U, 2.2 GHz or Higher
2. RAM (Minimum) 4 GB
3. OS Microsoft Win 7/8/10 Pro, 2003/2008 Server
(Home/ Starter /Single Editions Not Supported)
4. Microsoft.Net Framework Yes (Version 3.5)
5. Ethernet & Serial Port Yes
6. USB Port Yes
7. Display (1024 x 768 x 16 Bit Colours) Yes
8. Mouse / Keyboard Yes
9. Hard Disk (Free Space) 50 GB

FAQ

1. I have purchased XP-GT3500L and I need to…
2. I have installed XP-GT3500L at my site, but how do I configure the controller
3. Troubleshooting Guide

Video Tutorials


XP-GT/GTR Setup Guide (Network Setting)
