XP-M2300i

XP-M2300i

xp-m2300i-1

2 Door IP Access Controller

  • Direct IP Lan
  • Encrypted IP
  • High Capacity
  • True 2 Doors / 4 Readers Capability
  • Integration Reader (CCTV)

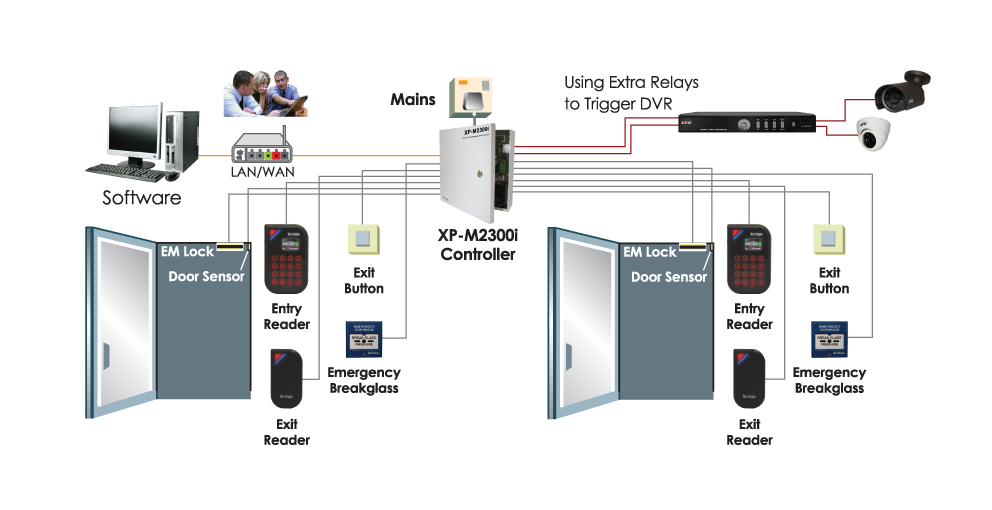

FeaturesConfiguration DiagramDocumentationFAQ
No Item Features
1. No. of Doors 2 Doors
2. No. of Readers Max 4 Readers (Plato Readers) – 2 Entry / 2 Exit
3. Wiegang / ABA Reader Yes – Max 2
4. Connection to PC 1. IP LAN (10/100 Base-T) /
2. RS485
5. Connection to Readers 1. RS485 – Plato Reader Series /
2. Wiegand/ABA
6. Card Holders 30,000 (16 Digits)
7. Transactions 50,000
8. Time Setting 255 Time Sets / 255 Time Zone (No Access Level Limits)
9. Holiday 30 (2 sets)
10. Inputs 10 Supervised/Digital (Switchable)

  • 2 Door Sensors + 2 Exit Buttons
  • 1 Dedicated Fire Alarm Input
  • 5 Configurable as Reader Tamper, Emergency Breakglass Monitor or General purpose
11. Door Relay Output(s) Yes (2)
12. Extra Relay Output(s) Yes (2) – Configurable
13. Encrypted IP Yes. AES 128
14. WAN Dynamic IP Yes
15. Real Time Clock Yes (with On Board Battery)
16. Power Fail Monitor Yes (with Power Level Monitoring)
17. Firmware Upgrade Download from Software
18. Diagnostic Yes – Using Built in Web Browser
19. Onboard LED Indicators Yes – Input, Output, Run, Diagnostic, Error
20. Onboard Buzzer Yes
21. Use with Other MicroEngine controllers Yes
22. Dimension 295mm (H) x 285mm (W) x 80mm (D)
23. Power 240VAC
xp-m2300i
No Documentation
1. PDF-Icon Product Brochure: XP-M2300i

FAQ

1. I have purchased XP-M2300i and I need to…
2. I have installed XP-M2300i at my site, but how do I configure the controller
3. Troubleshooting Guide
