XP-GLS130

XP-GLS130

XP-GLS130

Encrypted IP DesFire 1 Door Controller
GLS130 is a versatile and multifunctional single door controller that supports the latest Mifare contactless technologies – Mifare DesFire EV1. Through the implementation of Mifare DesFire, GLS130 offers the highest security measure in access control system such as the data communication from start to finish is encrypted using the very secure algorithms of Triple Des (3DES), 3KDES & AES. The GLS130 controller also provide the highest security control in access control system as it supports the RFID chips with UID up to 64 bits, hence it can countermeasure the security risk relating to duplicate card ID. With GLS130, you can expect your security access control system is safe and sound from end to end.

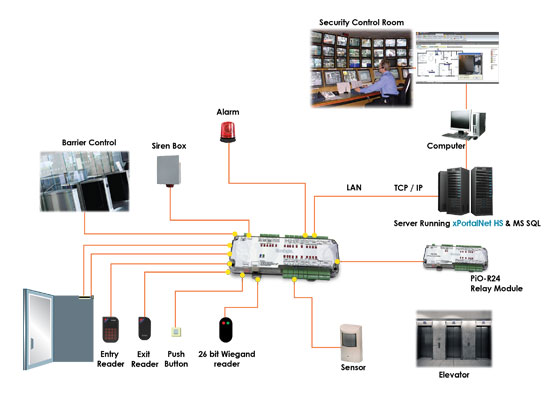

FeaturesConfiguration DiagramDocumentation
No Item Features
1. No. of Doors 1 Doors
2. No. of Readers Max 2 Readers (Plato DesFire Reader)
3. Wiegang / ABA Reader Max 2 Wiegand 26 bit Readers – for Low Security
4. Connection to PC TCP/IP -Encrypted IP with AES 128
5. Connection to Plato Readers RS485 (Encrypted)
6. Card Holder 30,000 (64 bits / 20 Digits)
7. Card ID Secured and Encrypted with DesFire Algorithms
8. Card Serial Number Recorded together with the Card ID
9. Transactions 50,000
10. Time Setting 255 Time Sets / 255 Time Zone (No Access Level Limits)
11. Holiday 30 (2 sets)
12. Inputs 5 Supervised/Digital (Switchable)
– 1 door Sensor + 1 Exit Button
– 1 Dedicated Fire Alarm Input
– 2 Configurable as Reader Tamper, Emergency Breakglass Monitor or General Purpose
13. Extra Relay Output 1
14. Real Time Clock Yes – with onboard battery
15. WAN Support Yes – Support Dynamic IP
16. Power Fail Monitor Yes
17. Global Anti-Passback Yes – Using SNet-GAC Global Access Controller
(up to 128 doors per cluster)
18. Live Firmware Upgrade Yes – Download Live from Software
19. Diagnostic Yes – Using built in Web based system
20. Onboard LED Indicators Yes
21. Onboard Beeper Yes
22. Full Functionality without Computer Yes – Does not depend on Computer for Runtime Data Lookup
23. Processor Microchip PIC32 – 32bit RISC MCU at 80MHz
24. Casing Dimension 255mm (L) x 95mm (W) x 27mm (D)
25. DIM Rail Mount Ready Yes
26. Power Consumption 12VDC at 400mA (Controller Board only)
27. External IO Support PiO-R24 for Lift Access
No Documentation
1. PDF-Icon Product Brochure: XP-GLS130
