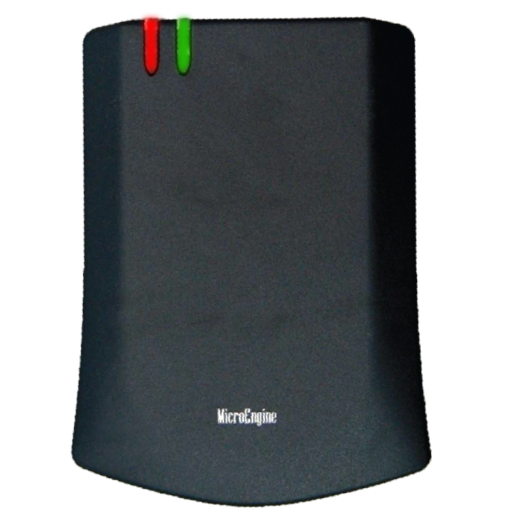

XP-RDMFX – Mifare Contactless Smart Card Reader
XP-RDMFX – Mifare Contactless Smart Card Reader
- MIFARE (13.56MHz)
- Simple
- Realible

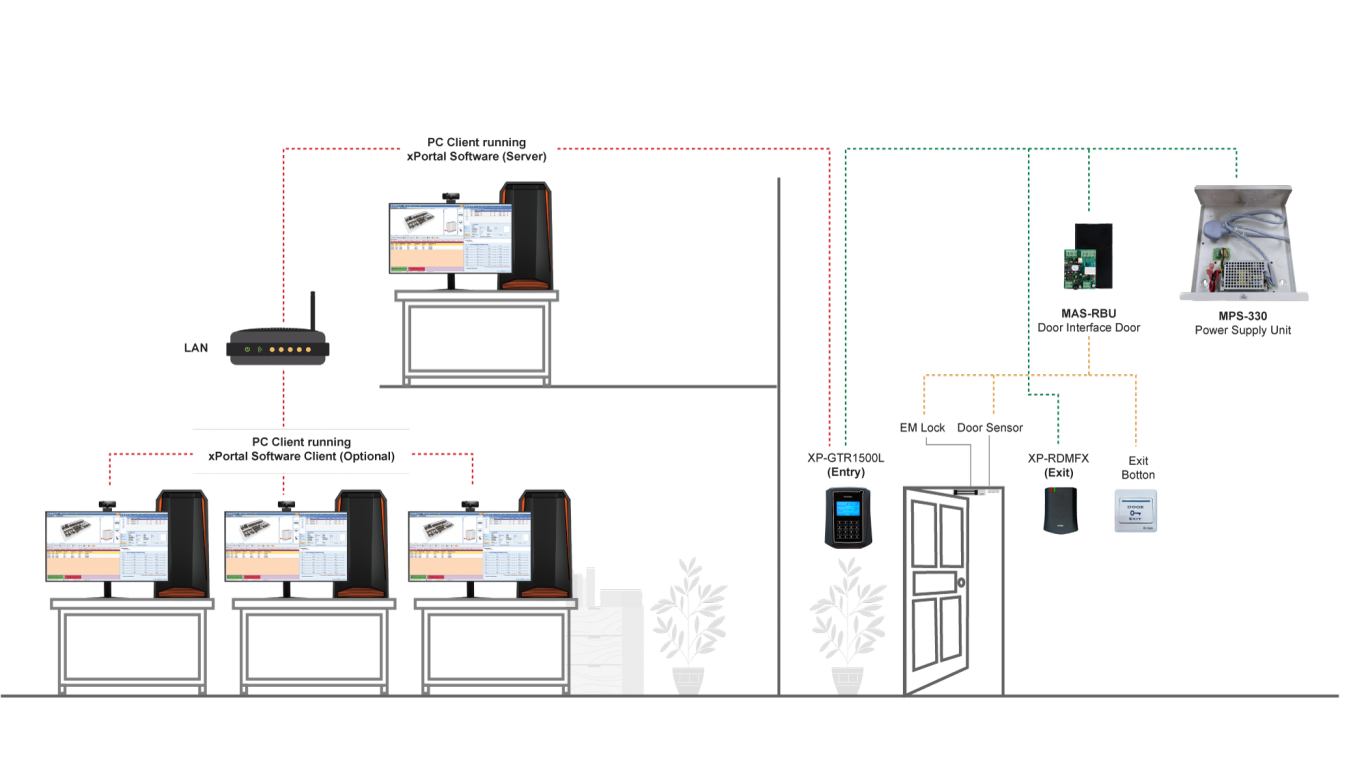

FeaturesConfiguration DiagramDocumentation
| No | Item | Features |
| 1. | Connectivity | ABA T2 |
| 2. | Reader type | ISO14443 A/B / Mifare |
| 3. | Card Digits | 6 |
| 4. | Reading range | Max. 3cm |
| 5. | LED indication | Green and Red |
| 6. | Buzzer | Yes |
| 7. | Dimension | 125mm x 94mm x 30 mm |
| 8. | Epoxy | No |
| 9. | Weatherproof | No |
| 10. | Casing Material | ABS plastic |
| 11. | Input Voltage | 12VDC |
| 12. | Current (Typical) | 150mA at 12VDC |
| 13. | Operating Temperature | 0-50◦C |
| No | Documentation |
| 1. |  Datasheet_2025: XP-RDPRX |
