XP-SNET-E248 – 24 Supervised Input & 8 Relay Output Extension Board
XP-SNET-E248 – 24 Supervised Input & 8 Relay Output Extension Board

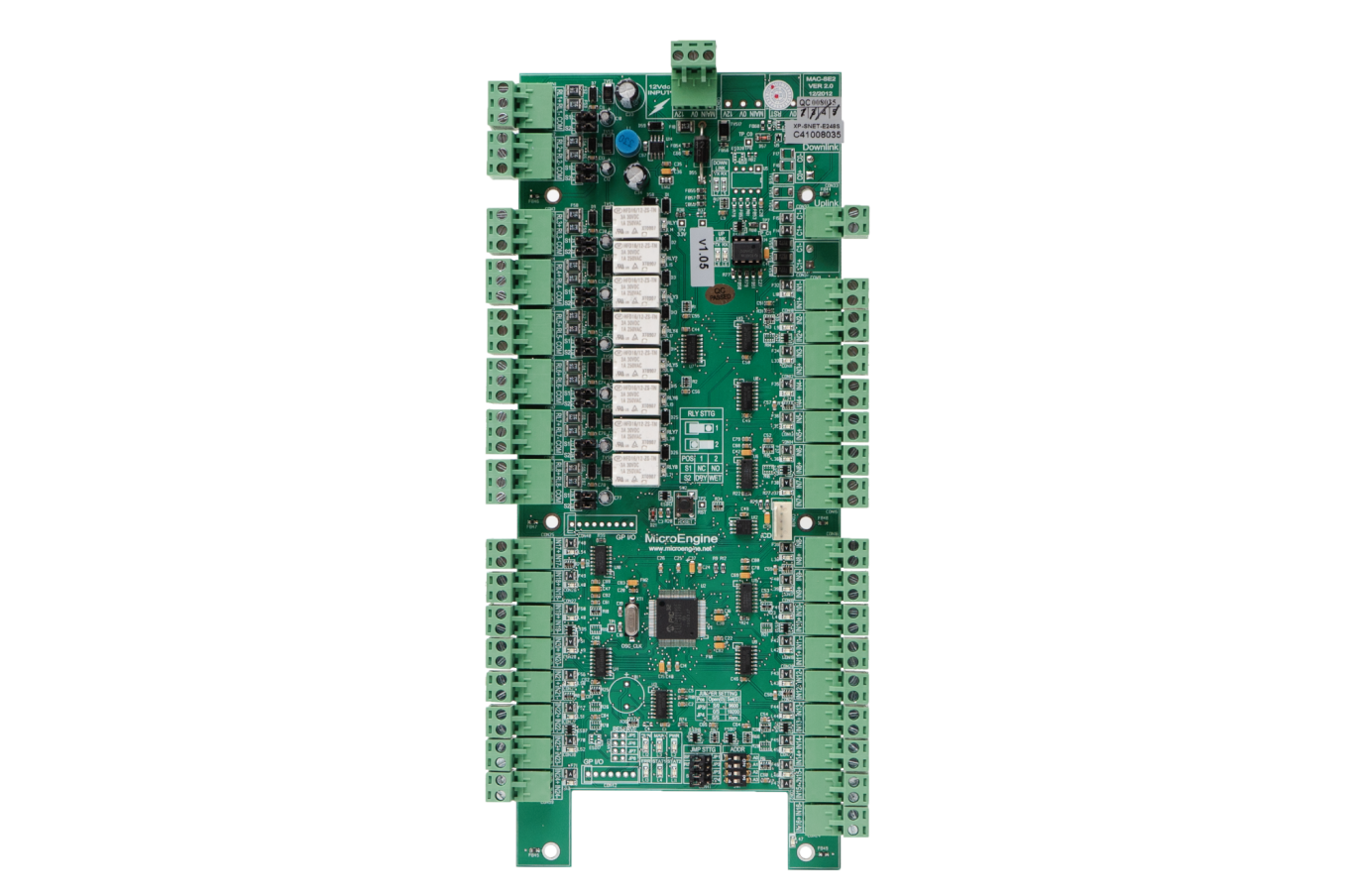

MicroEngine XP-SNET-E248 is a 24 supervised input points & 8 relay outputs extension board. It has 8 durable relays with LED indicator for each of the relay. It is designed for Door/Alarm Monitoring System and Panic Button System. It is controlled by a main controller according to the application being used.
- Alarm Monitoring System
FeaturesConfiguration DiagramDocumentation
| No | Item | Features |
| 1. | Supervised Input | 24 Able to detect line being bypassed, cut or triggered |
| 2. | Relay Output | 8 Relay Rating : 1A |
| 3. | On Board Surge Suppressor | Yes |
| 4. | Power Requirement | 12V @ 2A |
| 5. | Communication to Base Board | RS485 |
| 6. | LED indicator | Yes |
| 7. | Operating Temperature | 10 °C to 50°C (Degree Celsius) |
| 8. | Dimension | 270 mm x 130 mm x 25 mm (Board) |
| No | Documentation |
| 1. |  Datasheet_2025: XP-SNET-E248 |
