How to set visitor auto sign out in xPortalNet?
Author: Microengine Views: 17948 Created: 29-06-2015 05:14 PM 0 Rating/ Voters

This article contains steps to configure auto visitor sign out at the xPortalNet software.

Applies To:

  • Software xPortalNet
 Resolution Summary


Visitor Auto Sign Out feature allows visitor to automatically sign out after they flash the card when exit the building.

  1. Turn on the "Enable Visitor Auto Sign Out" field from the Door setting.
  2. Card Records must be exists before can be assigned to the visitor.
  3. The visitor will be automatically signed in upon visitor registration. Then, visitor card will be given to the visitor.

    1. To sign in visitor, simply click Visitor Sign In (F3) button and enter the card number of visitor.
    2. When sign in the visitor, the Visiting Staff and Visitor Card No will automatically populated. Please select preferred Visiting Staff & Visitor Card No.
    3. Enter the visitor information and sign in accordingly.

  4. Upon exiting the building, visitor just need to flash the visitor card at the entry/exit door that is reserved for visitor to sign out. Visitor will automatically signed out .
    Caution! Make sure visitor Card No is not blocked by the software. If the Card No has been blocked, the Card No will be no longer has access to the door and floor.

    » This feature will be disabled after the card has been blocked. For safety measure, the card must be sign out manually.

 Resolution


Please perform steps below:


  1. Make sure controller is already "Up".
  2. Make sure the visitor's Visiting Staff records already exists. (Staff Records)

  1. Login to xPortalNet Client.
  2. Open Door settings. Go to Data Setup › System Settings › Door.
  3. Modify the door that you wish to enable the visitor auto sign out feature.
  4. Find Enable Visitor Auto Sign Out. Select "Yes".
  5. Click OK to confirm and save the changes.


  1. Open Card Records. Go to Data Setup › Access Data Settings › Card Records › Get Now.
  2. The Card Detail Setup window will be shown.
  3. Click Add button to add new card detail for visitor.
  4. Click OK to confirm and save the changes.

    The card type "Permanent" is for the staff records, meanwhile "Visitor" is for visitor card records.

  1. To sign in visitor, open Visitor Still In List tab then simply click Visitor Sign In (F3) button.

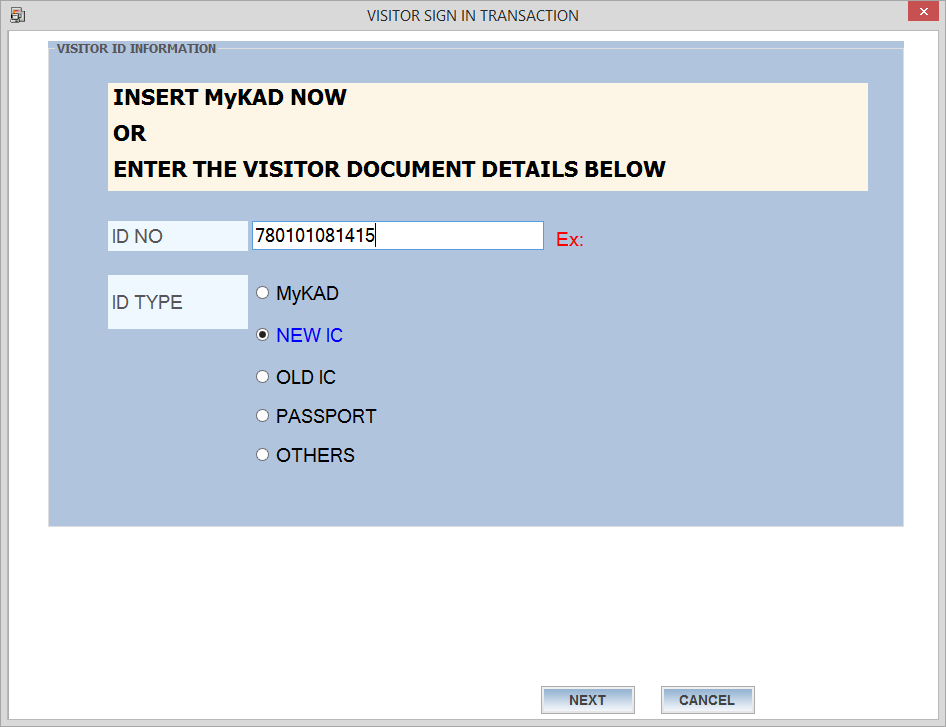

  2. The following window will be shown. Enter the ID No and select the ID Type of visitor.

    1. Make sure the card reader is already connected to the PC if you are going to select ID Card or Passport.
    2. Scan the ID Card and it will automatically redirect to the Visitor Sign In Transaction window.

  3. If you select others, enter any ID No then click Next to sign in.
    Different ID Type can be choose. The visitor information will be retrieved from the ID Card selected. If you choose Others, you will need to fill up your information manually.


  4. If the visitor card is not available, the following pop up message will be shown. You must add the visitor card first to continue. Refer to "Step 2: Add Card Records" above.

  5. The following window will be shown if visitor card is available.


  6. When sign in the visitor, the Visiting Staff and Visitor Card No will automatically populated. Please select preferred Visiting Staff & Visitor Card No.
  7. Enter the visitor information.
  8. Click Next to sign in. The following pop up message will be shown if visitor successfully sign in.

  9. You may find visitor record from the Visitor Still In List tab when visitor successfully signed in.


  1. To sign out visitor, just flash visitor card at the reader.
  2. The visitor will automatically sign out.
    Please present the correct visitor card upon exiting the door.

    3. » Circumstances (Card No is Blocked due to some security reason)

  1. If the visitor card has been blocked, kindly request from the System Admin to unblock the card and sign out manually.
    »     For safety measure, Auto Sign Out Visitor will be disabled after the card has been blocked.

  2. After unblocked the card, open Visitor Still In List tab then simply click Visitor Sign Out (F7) button.
  3. The following window will be shown. Enter the Visitor Card No.
  4. Click OK to sign out.

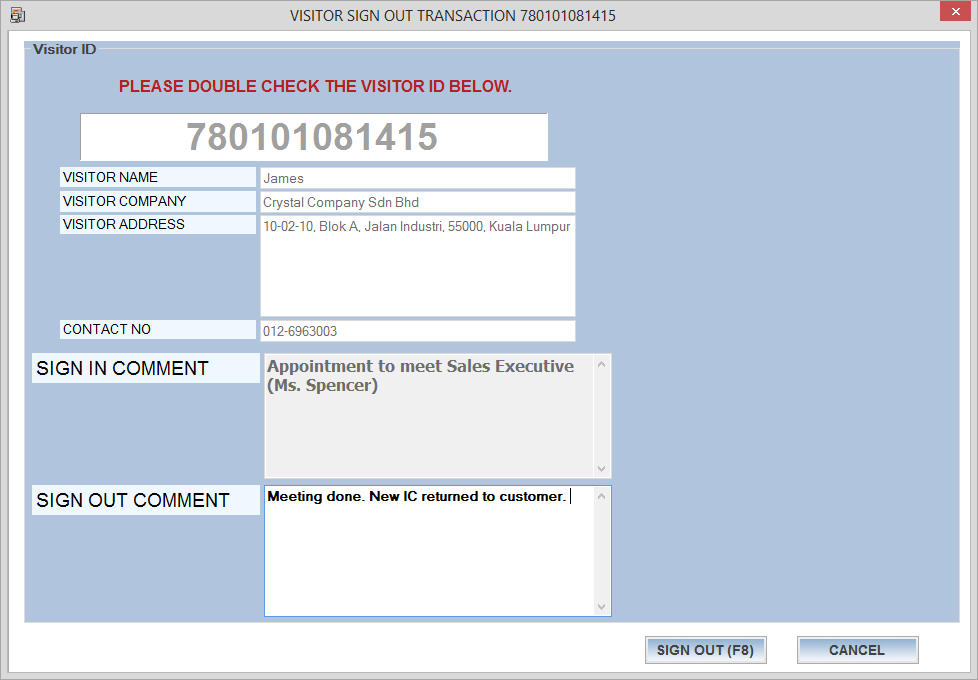

  5. The following window will be shown. Please enter necessary sign out comment.
  6. Click Sign Out (F8) button to continue.


  7. The following pop up message will be shown to indicate visitor successfully sign out.
Custom Fields
  • Summary: This article contains steps to configure auto visitor sign out at the xPortalNet software.
  • Search Tags: visitor auto sign out, visitor still in list, visitor sign in, visitor sign out, visitor card blocked, card records, visitor still in list
