How to manually add staff record in xPortal Client software?
Author: Microengine Views: 26994 Created: 06-03-2015 06:15 PM 0 Rating/ Voters

This article contains steps to manually add staff record in the software.

Applies To:

  • Software xPortal2005, xPortal2007, xPortalNet, xPortal3000
 Resolution Summary

There are 4 ways to add staff record using the xPortal software. You may choose any option that you preferred. The 4 options are "Manual Add", small"Batch Add", small"Scan List" and small"Import Staff"This article will show you the steps of using "Manual Add".


Please complete the following steps in order to add staff record:

  1. Run xPortal Client to start adding the staff record.
  2. Please ensure the xPortal Server is already running and controller is up.
  3. Open Staff Records. Go to Data Setup › Access Data Setting › Staff Records.
  4. Click Add button to insert a new Staff Record. A form as below will be displayed.

  5. Enter the information of the staff.
  6. After you have entered all the necessary fields, open Door Accessibility tab to set the door access for the staff.

  7. Select small Door Accessibility to determine at which day and what time the staff can access particular door.

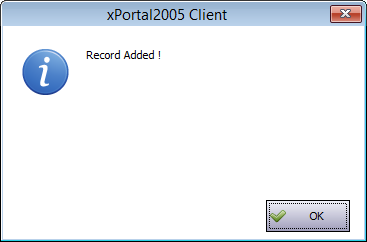

  8. Click OK to confirm. The following window will be shown.

  9. The following window will be shown. Click OK to continue.

  10. The software will automatically send user setting (install card) to all controllers.

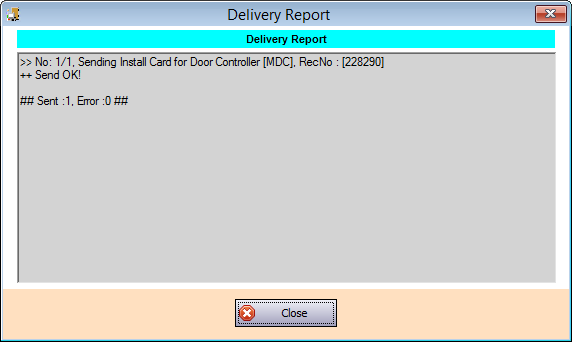

  11. After downloading all the settings, it will display a report of data being sent. Click Close to return to Staff Detail Setup menu.

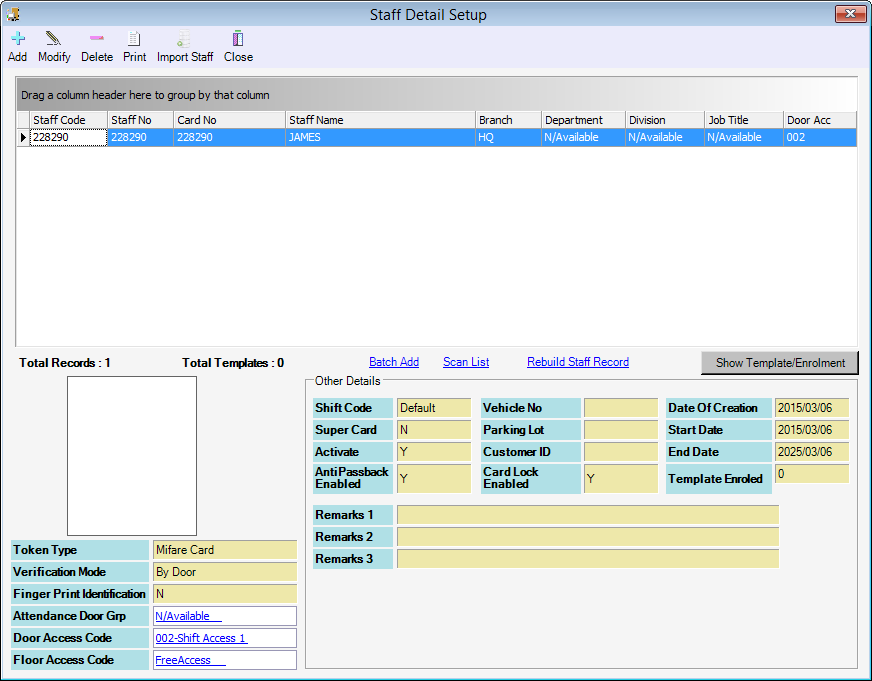

  12. The newly added staff record will be listed in the Staff Detail Setup menu.

  13. Enter ID Number/ flash card to the reader to verify it is already installed.
  14. The card will get "Valid Entry Access" if the staff is granted for access on the installed controller.
  15. Finished.

Custom Fields
  • Summary: This article contains steps to manually add staff record in the software.
  • Search Tags: add staff record, unlisted user, manual add, add card, unknown card number
Comments 2
  • [Chin]: Export Staff Record 22-09-2015 03:57 PM #

    Hi P.I.C,

    how do i export staff record from xportal3000?

  • [Microengine ]: Re: Export Staff Record 22-09-2015 06:44 PM#

    Hi Mr. Chin,

    To export staff record from xPortal3000, kindly refer to this article:
