How to configure Time Set in xPortal Client software?
Author: Microengine Views: 23659 Created: 06-03-2015 04:09 PM 0 Rating/ Voters

Time Set is the grouping of time interval within one day (24 hours) that defined the activation period of an operation or function. This article contains steps to configure Time Set.

Applies To:

  • Software xPortal2005, xPortal2007, xPortalNet, xPortal3000

 Resolution Summary


The xPortal software supports 255 sets of Time Set except xPortalNet IS/7 where it can support up to 4080 sets of Time Set. There are two sets of default setting which you cannot delete or edit this setting. The address or location is at '000' and '001'. The Time Set 000 is means no access whereas Time Set 001 is means full access.

 Resolution


Please complete the following steps in order to configure time set:

  1. Run xPortal Client. Make sure the xPortal Server is already running and controller is up.
  2. Open Time Set Setup
    1. Go to Data Setup › Access Data Setting › Time Set.
    2. For xPortal3000, go to Control Panel › Time Set.

  3. The menu as below will be shown.
    small

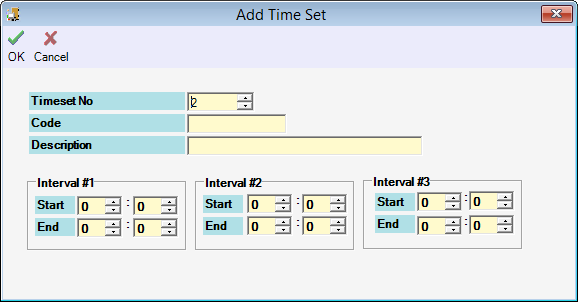

  4. Click Add button to create a new Time Set. An Add Time Set menu will be shown.


  5. Enter the information of the Time Set as described below:
    Field Description
    Unit No  An unique Time Set address number. (range from 002-255)
    Code A short name that describes the Time Set.
    Description Longer description for the Time Set.
    Interval
    #1-3
    1 interval supports time interval within one day (24 hours). All Start Time and End Time is in 24 hours format.

  6. After you have entered all the necessary fields, click OK to confirm and save settings.
  7. The following window will be shown. Click OK to continue.
    small

  8. The software will automatically send the Time Set setting to all controllers.

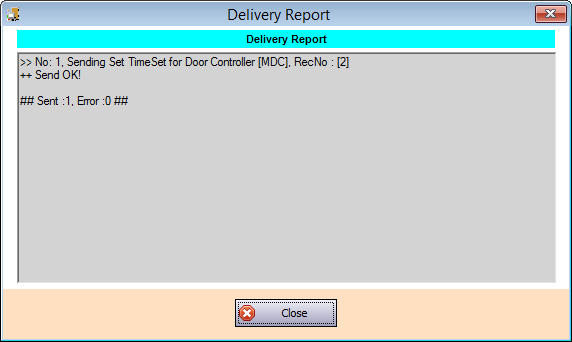

  9. After downloading all the settings, it will display a report of data being sent. Click Close to return to Time Set Setup menu.


  10. The newly added time set will be listed in the Time Set Setup menu.
    small
Custom Fields
  • Summary: Time Set is the grouping of time interval within one day (24 hours) that defined the activation period of an operation or function. This article contains steps to configure Time Set.
  • Search Tags: time set configuration, setup, time, set, time set
