This article contains steps to configure a single XP-GT controller door as Entry and Exit.
Applies To:
- XP-GT1200L/ XP-GT3200L, XPGT1200LABX/ XP-GT3200LABX, XPGT3200LE, XP-GT3200LCPX, XP-GT500LE
Resolution Summary Resolution

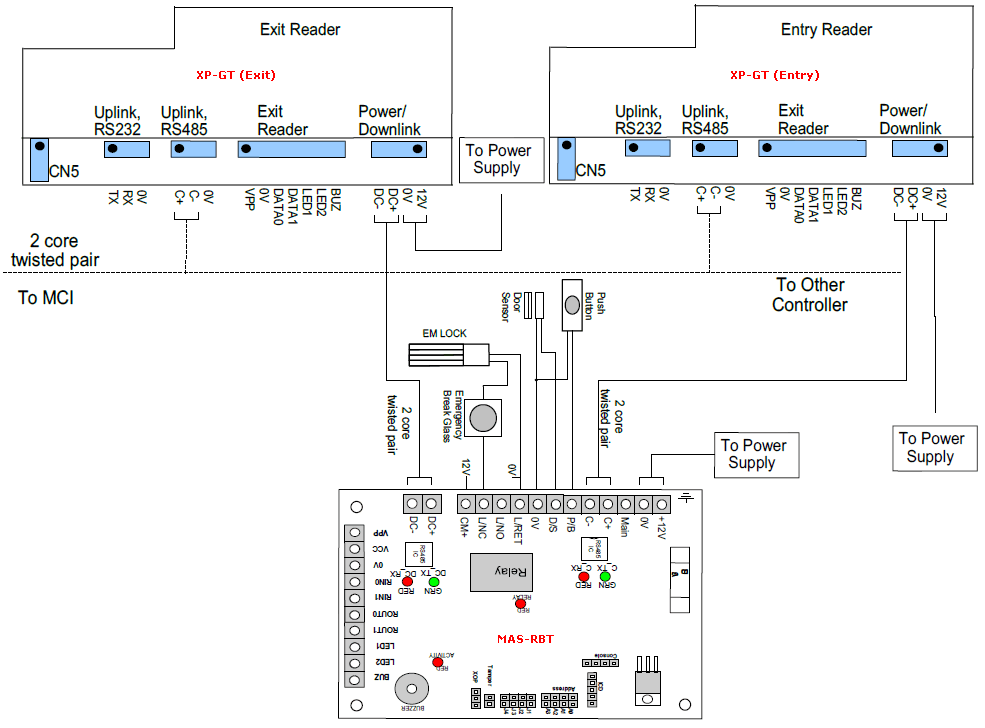

Figure 1: Wiring diagram for 2 units of XP-GT to MAS-RBT
For high resolution image, please download the attached wiring diagram at the end of this article.
- Refer to the wiring connection above and ensure it is correct.
- Power up the reader.
Steps to configure the reader as Entry reader/ Exit reader:
- Enter
- Press '1' for System Menu › Press '2' for Door Parameter.
- The screen below will be displayed.
- Use the
and
buttons to navigate the menu to the desired parameter. - Modify the parameter values by pressing
, followed by the desired value and again to confirm. - Find As Exit Reader parameter and modify the value accordingly.
- To set the reader as Entry Reader, set the value to OFF.
- To set the reader as Exit reader, set the value to ON.The changes will not be saved if the configuration is interrupted midway.
- Use the
button to return to the system menu. - You will be prompted to confirm your changes before exiting. Press to confirm changes.
- Repeat steps for another reader. If this reader you set as Entry reader, please set the other reader as Exit reader.
Figure 2: Wiring diagram for 1 unit of XP-GT to MAS-RBT & XP-RDPRX
- Refer to the wiring connection above and ensure it is correct.
- Power up the reader.
- Find the door parameter As Exit Reader. Refer to the steps (1 until 8) at Option 1 above.
- If you wish to set the XP-GT controller as Exit Reader, set the value to ON.
- Otherwise, set the value to OFF to enable the XP-RDPRX to become the Exit Reader.
