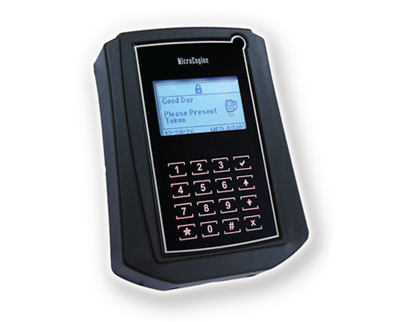

XP-GTR1500L

XP-GTR1500L

  • Reader with Touch Sense Keypad
  • Built-in LCD Screen
  • Built-in Controller & LAN
  • Support Programming through Keypad & LCD at the reader
FeaturesConfiguration DiagramPC RequirementsFAQ
Features Functions
1. Card User Memory 1,500
2. Transaction Records 50,000
3. Single Unit Reader, Keypad & Controller Yes
4. Build-In Card Reader Yes – EM Card (Mifare Card with Mifare Sector Reading Model Available)
5. Access Operation Mode Card Only, PIN Only, Card + PIN
6. Fingerprint Template Capacity
1:N
No
7. Display 128 x 64 Graphic Display with Back Light
8. Keypad Touch Sense Keypad with Backlight
9. Time Set & Time Zone 99
10. Holiday Dates 40
11. Auto PIN Not Available
12. Built-in Real Time Clock with Battery Yes
13. Car Park Mode External Entry Reader No
14. Exit Reader Yes
15. Exit Push Button Yes – with Time Zone Control
16. Support Wiegand 26-bit Reader Yes
17. Anti-Passback Yes
18. Controller Operation Mode Access Control Mode
19. Supports Programming Through Keypad
& LCD at the Reader
Yes
20. Lock Control, Door Sensor & Exit Button Input Yes – Through MAS-RBM Located Inside the Door
21. Configurable Lock Release Time Yes – 0-99 secs.
22. Configurable Door Open Time Yes – 0-99 secs.
23. Auto Lock Release Time Zone Yes
24. Sensor & Output No
25. Data Flash Memory 32MBit
26. Onboard Buzzer Yes
27. Communication Ports RS485 / LAN
28. Can be Linked to PC for Software Control Yes
29. Power 12VDC
30. Dimension 152mm (H) x 122mm (W) x 32mm (D)

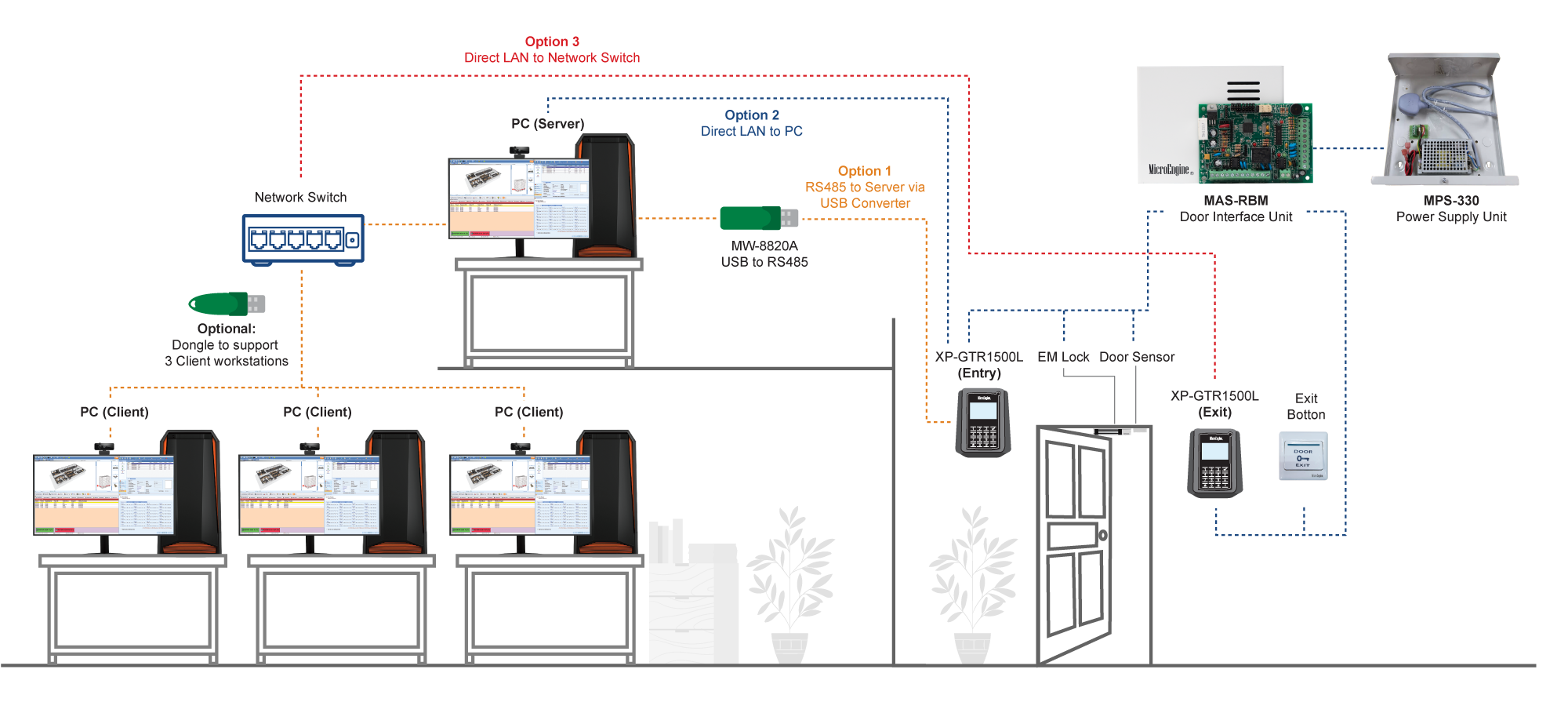

Configuration Diagram GTR1500L

No System Requirements
1. CPU (Recommended) Intel Core i5-5220U, 2.2 GHz or Higher
2. RAM (Minimum) 4 GB
3. OS Microsoft Win 7/8/10 Pro, 2003/2008 Server
(Home/ Starter /Single Editions Not Supported)
4. Microsoft.Net Framework Yes (Version 3.5)
5. Ethernet & Serial Port Yes
6. USB Port Yes
7. Display (1024 x 768 x 16 Bit Colours) Yes
8. Mouse / Keyboard Yes
9. Hard Disk (Free Space) 50 GB

FAQ

1. I have purchased XP-GTR1500L and I need to…
2. I have installed XP-GTR1500L at my site, but how do I configure the controller
3. Troubleshooting Guide

Video Tutorials


XP-GT / GTR Setup Guide (Network Settings)
