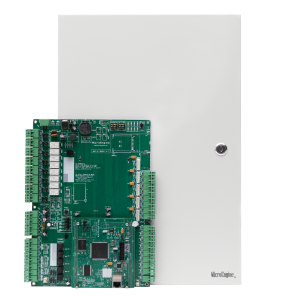

Modular System – Extension Board Based
-
The system is designed to allow you to extend the capacity by simply adding extension boards onto it. This gives you the cost advantage when you are implementing minor capacity upgrades. Moreover, the extension board based design provides a consistent architecture in the system and thus promotes better maintenance quality by reducing the system learning time.
-
Centralised connection
-
The cables are terminated in the controller. This allows faster data processing as transfer of data are all done onboard and the readers are directly connected to the controller.
-
Centralised connection also promotes better deployment and maintenance quality. The engineers can perform the inspection and service all at one place and this can help to reduce the cost of maintenance operations.
-
Configurable to Distributed Architecture
-
Where remote interfacing of door / reader or I/O are required, the controller supports these remote interfacing modules (RIM) that connect to the controller using RS485.
-
This is a flexible and powerful controller capability that gives you the benefit of both useful centralized and distributed architecture in one box.
-
Support Door, Lift, Alarm Monitoring
-
The controller has been built for high end integrated security applications. It can support door access control, car park access control, lift access control and alarm monitoring.
-
You can configure the capacity of the system by adding extension boards or remote interfacing modules.
-
32 bit ARM Processor
-
The controller uses the 32bit ARM RISC processor at 72MHz. This is a powerful processor for industrial applications and it enables the system to process the complex applications in real-time manner.
-
Onboard IP with Encryption
-
The controller is equipped with LAN connectivity at 10/100Base-T using TCP/IP protocol.
-
It supports push based communication to computer for faster data transfer speed.
-
The IP communication is encrypted using industrial standard AES128 for secured communication.
-
Remote Firmware Download
-
Firmware can be downloaded from the application software via the IP interface.
-
This helps to improve the maintainability of the controller at site. You can update or upgrade the firmware from the computer at site without needing to open the controller box or bring the controller back for service.
|
|
|
|
|
|
|
|
|
 |
|
SNet 5 Base Controller Features |
|
|
|
No.
|
Item
|
Features
|
|
1
|
Max Door
|
5
|
|
2
|
Relay Output
|
8 (5 for Door Relay + 3 General Purpose)
Relay Rating: 1A
|
|
3
|
Sensor Input
|
16 Supervised (As Door Status or General Purpose)
|
|
4
|
IP
|
Yes. LAN 100 Base T
|
|
5
|
Reader
|
-
MicroEngine Plato Readers : Max 10 (5 Entry + 5 Exit)
-
Wiegand / ABA Readers : Max 5
|
|
6
|
Comm Port
|
Yes.
-
RS485 to Remote Interface Module
-
RS485 to Extension Boards
|
|
7
|
Card Number Length
|
Up to 16 Digits
|
|
8
|
Max Card DB
|
20,000 / 40,000 / 100,000 *
|
|
9
|
Max Transaction DB
|
50,000 / 100,000 / 200,000 *
|
|
10
|
Time Zone
|
255
|
|
11
|
Time Set
|
255
|
|
12
|
Floor Zone
|
255
|
|
13
|
Global Antipassback
|
Yes
|
|
14
|
Interlocking
|
Yes
|
|
15
|
Access Mode
|
-
Card + Pin
-
Card Only
-
Pin Only
-
Facility Code
-
Fingerprint Only
-
Card + Fingerprint
-
Pin + Fingerprint
-
Automatic Lock Release
-
Inhibit Access
|
|
16
|
IP Messaging Encryption
|
Yes. AES128.
|
|
17
|
Alarm Monitoring Support
|
Yes
|
|
18
|
Extension
|
Up to 4 Extension Board
SNet-E5D : 5 Door Extension Board
SNet-E32R : 32 Relay Output Board
SNet-E32S : 32 Supervised Input Board
SNet-E248l : 24 Supervised Input & 8 Relay Output Board
Max Extension Capacity :
5 Doors / 128 Inputs / 128 Outputs
|
|
19
|
Support Remote Interface Module
|
Yes. Use RS485.
Door Interface Unit (Max 10) :
MK801 Reader Interface
I/O Controller (Max 10) :
MiO-S168 – 16 Supervised Inputs / 8 Outputs
MiO–R16 – 16 Relay Outputs
MiO-L32 – 32 LED Driver for Mimic Panel Use
Max Remote Capacity :
10 Doors / 160 Inputs / 160 Outputs
|
|
20
|
Processor
|
ARM RISC Processor at 72MHz
|
|
21
|
Power Requirement
|
12V @ 500mA (Base Board Only)
|
|
22
|
Onboard LED / Buzzer
|
Yes
|
|
23
|
Remote Firmware Update
|
Yes. Can be done through application software at site.
|
|
24
|
Controller Package Spec
|
12VDC @ 5A with 12AH Battery
|
|
|
* Depending on Model |
|
|
|
|
|
|
|
|
|
SNet-E5D - 5 Door Extension Board
- Add another 5 door support to the controller system, becomes a 10 door controller
|
|
No.
|
Item
|
Features
|
|
1
|
Max Door
|
5
|
|
2
|
Relay Output
|
8 (5 for Door Relay + 3 General Purpose)
Relay Rating : 1A
|
|
3
|
Sensor Input
|
16
|
|
4
|
On Board Surge Suppressor
|
Yes
|
|
5
|
Power Requirement
|
12V @ 5A
|
|
6
|
Communication to Base Board
|
RS485
|
|
7
|
LED Indicator
|
Yes
|
|
|
|
SNet-E32R - 32 Relay Output Extension Board
- Add support for lift access control and alarm output system |
|
No
|
Item
|
Features
|
|
1
|
Relay Output
|
32
Relay Rating : 1A
|
|
2
|
On board Surge Suppressor
|
Yes
|
|
3
|
Power Requirement
|
12V @ 2A
|
|
4
|
Communication to Base Board
|
RS485
|
|
5
|
LED Indicator
|
Yes
|
|
|
|
SNet-E32S - 32 Supervised Input Extension Board
- Add support for supervised alarm inputs system |
|
No.
|
Item
|
Features
|
|
1
|
Supervised Inputs
|
32
Able to detect line being bypassed, cut or triggered
|
|
2
|
On Board Surge Suppressor
|
Yes
|
|
3
|
Power Requirement
|
12V @ 2A
|
|
4
|
Communication to Base Board
|
RS485
|
|
5
|
LED Indicator
|
Yes
|
|
|
|
SNet-E248S - 24 Supervised Input & 8 Relay Output Extension Board
- Add support for supervised alarm inputs and Output system |
|
No.
|
Item
|
Features
|
|
1
|
Supervised Inputs
|
24
Able to detect line being bypassed, cut or triggered
|
|
2
|
Relay Output
|
8
Relay Rating : 1A
|
|
3
|
On board surge suppressor
|
Yes
|
|
4
|
Power Requirement
|
12V @ 2A
|
|
5
|
Communication to Base Board
|
RS485
|
|
6
|
LED Indicator
|
Yes
|
|
|
|
|
|
|
|
|
Door Interface Unit |
MK801
- Add remote door interfacing capacity |
|
No.
|
Item
|
Features
|
|
1
|
Comm Port
|
2 RS485
1 to Controller
1 to MicroEngine readers
|
|
2
|
Relay Output
|
1 (Relay Rating : 1A)
|
|
3
|
Readers
|
2 (1 Entry / 1 Exit)
Onboard RS485 Port for Connecting to MicroEngine Readers & Wiegand / ABA Port for Connecting to 3rd Party Readers
|
|
4
|
On Board Surge Suppressor
|
Yes
|
|
5
|
LED Indicator
|
Yes
|
|
6
|
Power Requirement
|
12V @ 0.5A
|
|
|
|
|
I/O Controller |
MiO-L32
-Add remote support for LED drivers for mimic panel applications |
|
No.
|
Item
|
Features
|
|
1
|
Comm Port
|
1 RS485 (to Controller)
|
|
2
|
LED Driver Outputs
|
32 (20 mA)
|
|
3
|
Digital Input
|
2 (for Interfacing with Key-Switches)
|
|
4
|
On Board Surge Suppressor
|
Yes
|
|
5
|
LED Indicator
|
Yes
|
|
6
|
Power Requirement
|
12V @ 0.5A
|
|
|
|
MiO-S168
-Add remote support for supervised inputs and relay outputs |
|
No.
|
Item
|
Features
|
|
1
|
Comm Port
|
1 RS485 (to Controller)
|
|
2
|
Supervised Inputs
|
16
Able to Detect Line being Bypassed, Cut or Triggered
|
|
3
|
Relay Output
|
8 (Relay Rating : 1A)
|
|
4
|
On Board Surge Suppressor
|
Yes
|
|
5
|
LED Indicator
|
Yes
|
|
6
|
Power Requirement
|
12V @ 0.5A
|
|
|
|
MiO-R16
- Add remote support for relay outputs, can be used for lift access applications |
|
No.
|
Item
|
Features
|
|
1
|
Comm Port
|
1 RS485 (to Controller)
|
|
2
|
Relay Output
|
16 (Relay Rating : 1A)
|
|
3
|
On Board Surge Suppressor
|
Yes
|
|
6
|
LED Indicator
|
Yes
|
|
4
|
Power Requirement
|
12V @ 0.5A
|
|
|
|
xPortalNet Security Management Software System
|
|
|
|
|
|
Main Features |
|
No.
|
Item
|
Features
|
|
1
|
Client Server
|
Yes. Up to 20 Clients.
|
|
2
|
System
|
Door Access/Lift Access/Car Park/Alarm Monitoring/Guard Tour
|
|
3
|
Card Holder
|
200,000 (16 digits)
|
|
4
|
No. of Door / Readers
|
1024 Doors / 2048 Readers
|
|
5
|
No. of Inputs / Outputs
|
1024 Inputs / 1024 Outputs
|
|
6
|
Time Set / Time Zone
|
1024
|
|
7
|
System Users
|
Unlimited
|
|
8
|
Software Access Control
|
Yes. User Configurable Command Level Access Control.
|
|
9
|
Floor Plan System
|
Yes. Dynamic & with Camera Icon.
|
|
10
|
Database Supported
|
MS SQL Server / Oracle
|
|
11
|
OS
|
-
Windows XP / Vista / 7 Professional (32/64 bits)
-
Windows Server 2003 / 2005 / 2008 (32/64 bits)
|
|
12
|
Microsoft .Net
|
Yes
|
|
13
|
Communication Supported
|
RS232 / RS485 / Modem / UDP / TCP / HTTP
|
|
14
|
Controller Supported
|
-
SNet - IP 5/10 Door with Alarm Monitoring Flexible Architecture Controller
-
CNet - IP 5/10 Door with Alarm Monitoring Distributed Controller
-
CPRO - 5/10/20 Door Controller
-
CPROA - CPRO with Alarm Monitoring
-
CPROL - Lift Access Controller
-
M2000i - IP 2 Door Controller
-
GTR1200L - IP Single Door Card Reader Controller
-
GT3000L - IP Single Door Fingerprint + Card Reader Controller
-
M1000X - Single Door Card Reader Controller
|
|
15
|
Time Attendance
|
Yes. Non-Overnight.
|
|
16
|
Real Time Export
|
Yes. User Configurable.
|
|
17
|
Model
|
xPortalNet/3, xPortalNet/5, xPortalNet/20
|
|
18
|
Web Based
|
User xPortalWEB with full web based UI and online monitoring screen
|
|
|
|
|
Add-On Modules Features |
|
No.
|
Item
|
Features
|
|
1
|
CCTV Integration
|
With Major Brand DVR / NVR
-
Transaction Based Live Video Pop Up
-
Active Recording Trigger of DVR / NVR Based on Configurable Transaction
-
Video Icon on Floor Plan
-
Search Video through System Transaction Log
|
|
2
|
Guard Tour
|
Online Guard Tour System
-
128 Routes Using Readers / Input Point
-
Alarm Generation
|
|
3
|
Visitor Management System
|
Visitor Tracking
-
Multi-Client Software for Visitor Registration and Tracking
-
Online Visitor Screen / Visitor Blacklist / Alarm
-
Interfacing to IC Reader / Passport Reader
-
Camera / Scanner Capture Support
-
Visitor Pass
-
Assign Card from Card Database with Auto Sign Out
-
Transaction Report
|
|
4
|
Photo Badging System
|
-
Photo Badge Design / Template Creation
-
Automatic Photo Badge Image Creation by Card Holder Info
|
|
5
|
Multi-Server System
|
-
Server Application at Different Computers
-
Sync DB & Event Log with a Master Server
|
|
6
|
User Partitioning
|
DB / View Partition Assignment by System User
|
|
7
|
Web Time Attendance
|
-
Web Browser Interface
-
Leave Management / through Web Browser
|
|
|
|
|
|
|
|
|
No.
|
Item
|
Features
|
|
1
|
XP-SNet5
|
IP 5 Door SNet Controller
|
|
2
|
XP-SNet10
|
IP 10 Door SNet Controller
|
|
3
|
XP-SNet-E5D
|
5 Door Extension Board
|
|
4
|
XP-SNet-E32R
|
32 Relay Output Extension Board
|
|
5
|
XP-SNet-E248S
|
24 Supervised Input / 8 Relay Output Extension Board
|
|
6
|
MiO-S168
|
16 Supervised Input / 8 Relay Output Alarm Controller
|
|
7
|
MiO-R16
|
16 Relay Output Controller
|
|
8
|
MiO-L32
|
32 LED Driver Controller (for Mimic Panel)
|
|
9
|
MK801
|
Door Interface Unit
|
|
10
|
Plato-P80
|
Proximity Reader
|
|
11
|
Plato-P80K
|
Proximity Reader with Touch Sense Keypad
|
|
12
|
Plato-P80KL
|
Proximity Reader with Touch Sense Keypad and Color LCD
|
|
13
|
Plato-C80
|
Mifare / Cepas Reader
|
|
14
|
Plato-C80K
|
Mifare / Cepas Reader with Touch Sense Keypad
|
|
15
|
Plato-C80KL
|
Mifare / Cepas Reader with Touch Sense Keypad and Color LCD
|
|
16
|
MPS-320
|
Power Supply Unit with Charger and Low Power Cutoff
|
|
17
|
MAS-600EMS
|
MicroEngine EM Lock 600lbs
|
|
18
|
MAS-1200EMS
|
MicroEngine EM Lock 1200lbs
|
|
19
|
MAS-PB33
|
MicroEngine Wide Exit Button
|
|
20
|
MAS-MC
|
MicroEngine Door Sensor
|
|
21
|
MPC-100
|
Proximity Card
|
|
22
|
MPC-S1K
|
Mifare Card 1Kb
|
|
23
|
MCI-XPNET
|
xPortalNet Security Management Software
-
Multi Client
-
Based on .Net Technology
|
|
24
|
MCI-XPWEB
|
xPortalWEB Web Based Security Management Software
-
Web Based
-
Based on .Net Technology
-
Full Web based interface for system management
|
|
|
|
|
|
|
|
 |
|
|
|
|
