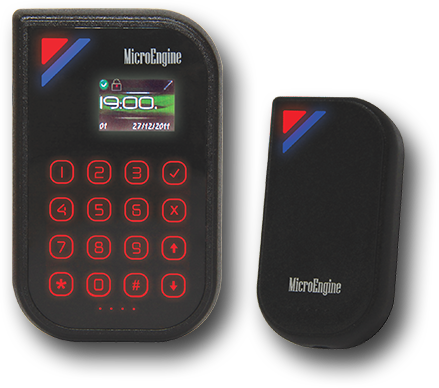

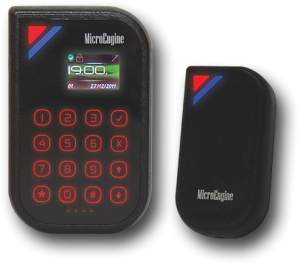

Plato Reader


The Standalone Access Control System is specially design with proven and reliable technology whereby it contains Built-In Integrity Monitoring System for maximum reliability.

The Architecture is easy to install without any PC to operate. Therefore, it is easy to Use, easy to Program and easy to Maintain.

XP-RCP80KL XP-RCP80
Slim reader
TouchSense keypad
Colour graphics LCD
EM / Mifare / CEPAS		 Slim reader
EM / Mifare / CEPAS

XP-RCP80K
Slim reader
TouchSense keypad
EM / Mifare / CEPAS


EM Proximity Features
No Features Plato-P80 Plato-P80K Plato-P80KL
01 Connectivity RS485 / Wiegang / ABA T2
02 LED indicator Blue and orange
03 Reader type ISO 14443 A/B / Mifare / CEPAS
04 Card Digits 16
05 Buzzer Yes
06 Dimension (H x W x D) 80 x 43 x 16 90 x 57 x 16 90 x 57 x 16
07 Epoxy Yes
08 Weather proof Yes
09 Reading range Max 7cm
10 Material PC Body - PC
Faceplate - Acrylic		 Body - PC
Faceplate - Acrylic
11 Keypad No Yes Yes
12 LCD No No Yes
13 Input voltage 12VDC
14 Current (Typical) 150mA at 12VDC 160mA at 12VDC 180mA at 12VDC
15 Operating Temperature 0 - 50 degree Celcius

Mifare / CEPAS Features
No Features Plato-C80 Plato-C80K Plato-C80KL
01 Connectivity RS485 / Wiegang / ABA T2
02 LED indicator Blue and orange
03 Reader type ISO 14443 A/B / Mifare / CEPAS
04 Card Digits 16
05 Buzzer Yes
06 Dimension (H x W x D) 80 x 43 x 16 90 x 57 x 16 90 x 57 x 16
07 Epoxy Yes
08 Weather proof Yes
09 Reading range Max 7cm
10 Material PC Body - PC
Faceplate - Acrylic		 Body - PC
Faceplate - Acrylic
11 Keypad No Yes Yes
12 LCD No No Yes
13 Input voltage 12VDC
14 Current (Typical) 190mA at 12VDC 200mA at 12VDC 220mA at 12VDC
15 Operating Temperature 0 - 50 degree Celcius

Configuration Diagram

Documentations
Brochures
Plato Reader Brochure Last Updated: 10/03/2011
