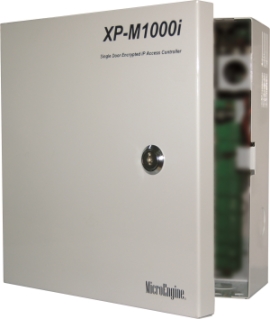

XP-M1000i

XP-M1000i

xp-m1000i

1 Door IP Access Controller

  • Encrypted IP
  • Direct TCP/IP
  • High Capacity
  • Supports Up to 16 Digits
FeaturesConfiguration DiagramDocumentationFAQ
No Item Features
1. No. of Doors 1 Door
2. No. of Readers Max 2 Readers (Plato Readers) – 1 Entry / 1 Exit
3. Wiegang / ABA Reader Yes – Max 2
4. Connection to PC IP LAN (10/100 Base-T) / RS485
5. Connection to Readers RS485 – Plato Reader Series / Wiegand/ABA
6. Card Holders 10,000 (16 Digits)
7. Transactions 50,000
8. Time Setting 255 Time Sets / 255 Time Zone (No Access Level Limits)
9. Holiday 30 (2 sets)
10. Inputs 5 Supervised/Digital (Switchable) – 1 Door Sensor + 1 Exit Button, 1 Dedicated Fire Alarm Input, 2 Configurable as Reader Tamper, Emergency Breakglass Monitor or General Purpose
11. Door Relay Output(s) 1
12. Extra Relay Output(s) Yes (1) – Configurable
13. Encrypted IP Yes – AES 128
14. Global Anti-Passback Yes – Use SNet-GAC
15. Real Time Clock Yes – with On Board Battery
16. WAN Support Yes – Support Dynamic IP
17. Power Fail Monitor Yes – with Power Level Monitoring
18. Firmware Upgrade Download from Software
19. Diagnostic Yes – Using Built in Web Browser
20. Onboard LED Indicators Yes – Input, Output, Run, Diagnostic, Error
21. Onboard Buzzer Yes
22. Use with other MicroEngine controllers Yes
23. Processor Microchip PIC32 – 32 bit RISC MCU at 80 MHz
24. Memory Program (FLASH: 512KB); DATA (EEPROM: 128KB, FLASH: 4MB)
25. PCB Board Dimension 160mm (L) x 80mm (W)
26. Casing Dimension 235mm (H) x 227mm (W) x 75mm (D)
27. Power Consumption Typically 400mA (Controller board only)
xp-m1000i
No Documentation
1. PDF-Icon Product Brochure: XP-M1000i

FAQ

1. I have purchased XP-M1000i and I need to…
2. I have installed XP-M1000i at my site, but how do I configure the controller?
3. Troubleshooting Guide
