How to configure address setting for XP-SNET reader?
Author: Microengine Views: 21530 Created: 08-05-2015 11:40 AM 0 Rating/ Voters

This article contains steps to configure the address setting for Plato readers / XP-MK800 (Reader Interface) on XP-SNET board.

Applies To:

  • XP-SNET
  • Plato Readers, XP-MK800, XP-MK801, XP-RDPRX
  • Software xPortalNet
 Resolution Summary

There are 2 ways to connect reader to XP-SNET controller.

  1. Using Plato Reader
  2. Using XP-MK800 (Reader Interface)
Please configure the reader's DIP Switch (Address No) and Door Setup.

 Resolution


Please complete the following steps below:

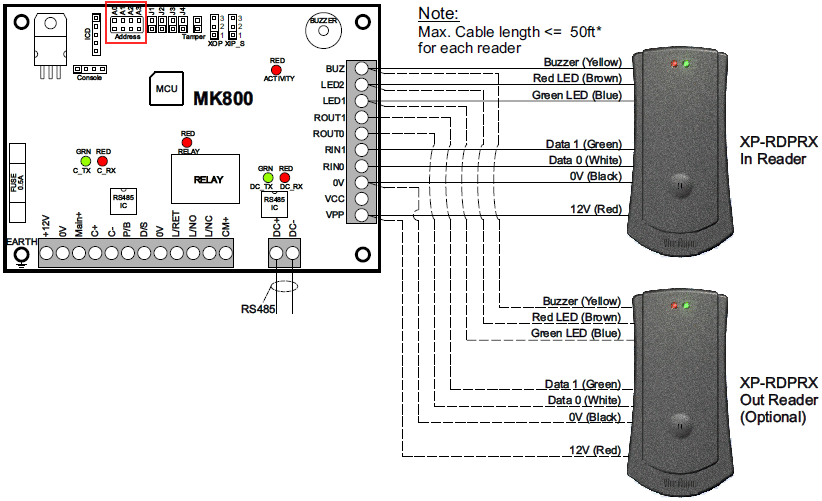

Please check the reader/ reader interface wiring connection before proceed. See small Wiring connection diagram for XP-SNET.

Plato Reader
Applicable to Plato Reader and PlatoKL Reader only

  1. Refer to the table below to set the address setting at Plato reader.
  2. Please ensure the DIP Switch set is correct (As Entry/ As Exit) for each door.
  3. Example:
    Field Description
    Assign reader for Door 1 Please connect the reader at CON 32 on XP-SNET board.
    • To set this door as Entry only, set the reader's DIP Switch to 00 OR
    • To set this door as Exit only, set the reader's DIP Switch to 01 OR
    • To set this door as Entry & Exit, please connect 2 Plato readers. Then set the reader's DIP Switch to 00 and 01.
  4. Toggle the DIP Switch correctly.
    Example: Address 01 - Toggle Up No 1 and Toggle Down No 2, 3 and 4.

  5. After configured the Plato Reader Dip Switch Setting, run xPortal Server.
    Please configure the controller before proceed. If Door record is exists, please modify the Door Setup.

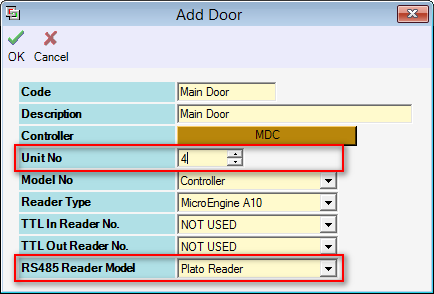

  6. Open Door Setup. Go to Server Admin › System Device Setup › Door.


  7. Please set the Unit No according to the Plato DIP Switch Setting.

    Example:
    1. DIP Switch Setting = 00, Unit No = 0
    2. DIP Switch Setting = 01, Unit No = 0
    3. DIP Switch Setting = 02, Unit No = 1
    4. DIP Switch Setting = 03, Unit No = 1

      For same Unit No, please configure it once only. 1 door is associated to Entry and Exit.
  8. Please ensure the Unit No is assign correctly at the correct door.
  9. Finished.


XP-MK800 (Reader Interface)

Applicable to XP-MK800, XP-MK801, XP-RDPRX

  1. Please find the Address Jumper from the MK board.

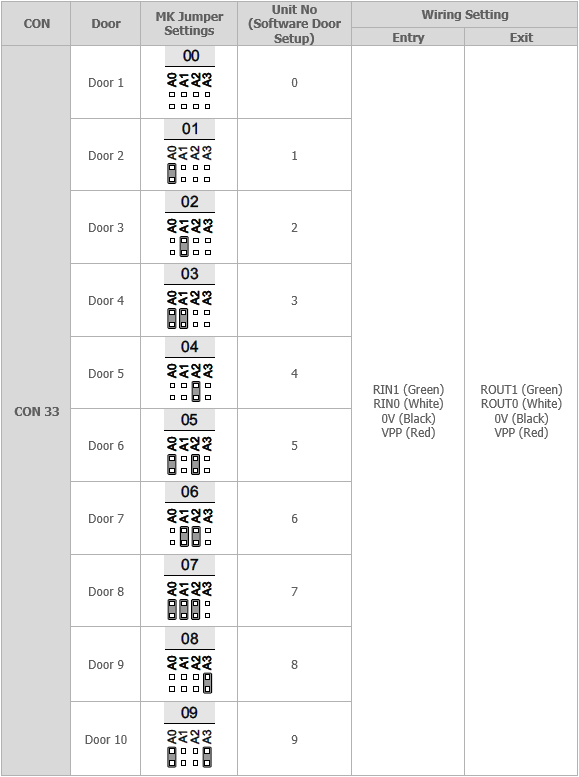

  2. Refer to the table below to set the Jumper Address Setting on MK (Reader Interface) and its corresponding Unit No from the Door Setup at the xPortal Server.
    Please short/ close MK Address Jumper which highlighted in grey from the table above.
  3. After configured the Jumper Address Setting on MK, run xPortal Server.
  4. Open Door Setup. Go to Server Admin › System Device Setup › Door.


  5. Please set the Unit No according to the MK Jumper Settings.

    Example:
    1. DIP Switch Setting = 00, Unit No = 0
    2. DIP Switch Setting = 01, Unit No = 1
    3. DIP Switch Setting = 02, Unit No = 2

  6. Select the correct Model No. Please ensure the Unit No is assign correctly at the correct door.
  7. Finished.
